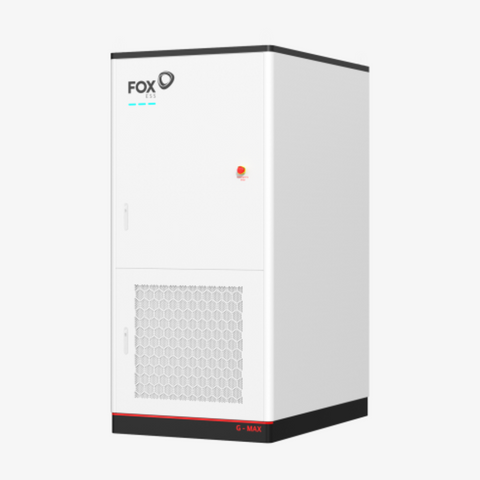

Fox-Ess G-MAX GM215kWh-100kW-2hE
Guarantee:
Article No: C00522
The Fox ESS G-MAX GM215kWh-100kW-2h is a high performance integrated energy storage solution designed primarily for industrial, commercial and utility applications. The device's all-in-one design combines a long-life battery, advanced battery management system (BMS), high-power inverter (PCS), security system, intelligent power distribution and thermal management in a single container system.
Key features:
- Safe operation: a compartmentalised design and a preventive alarm system ensure a high level of operational safety.
- Economical operation: zero energy loss thanks to efficient thermoregulation and frequency control.
- Intelligent control: multiple operating modes (peak shaving, load reduction, PV storage, frequency control). Data can be transmitted to the Fox ESS Cloud via Wi-Fi, 4G or 5G network.
- Modularity and expandability: a pre-configured system that can be installed and commissioned immediately by connecting it on site. Parallel connectivity for flexible system scalability.
- Easy installation: standard container design for outdoor applications.
Technical data:
Battery system:
- Battery technology: lithium iron phosphate (LFP)
- Module voltage/capacity: 3.2 V / 280 Ah
- Total energy storage capacity: 215 kWh
- Rated voltage range: 672 - 876 V
- Depth of charge (DOD): 0-100%
- Cycle count: ≥8000 cycles at 70% capacity
- Protection level: IP67
- Fire protection: aerosol-based system
- Cooling: liquid cooling
- Operating temperature: -25°C - +55°C
AC output:
- Rated power: 100 kW
- Peak power: 110 kW
- THDi: <3%
- Rated voltage: 380/400 V (three-phase)
- Power factor: >0.99 (adjustable between -1 and +1)
- Frequency: 50/60 Hz
- Efficiency (round trip): >89%
Communication and other:
- Communication connection: Ethernet
- Zajszint: <75 dB (1 méterről mérve)
- Dimensions (W x H x D): 1040 × 1500 × 2200 mm
- Tömeg: <2500 kg
- Certificates CEI-021, EN 50549-1/2, IEC 62619, IEC 60730-1 H, IEC 62477-1, UN 38.3
Fox-Ess G-MAX GM215kWh-100kW-2hE
€43.000,00 EUR
