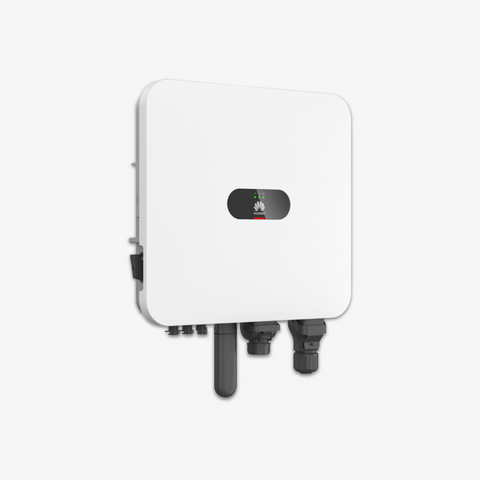

Huawei SUN2000-8K-MAP0
Guarantee: 10 years
Article No: C00533
The Huawei SUN2000-8K-MAP0 is a high-efficiency, three-phase solar inverter that is an ideal choice for small to medium sized residential or commercial systems. It provides reliable and safe operation through advanced features and advanced protection solutions, while also supporting the integration of hybrid energy storage systems.
Key features:
Effectiveness:
- Maximum efficiency: 98.6%, European efficiency: 98.0%, resulting in minimal energy loss.
- Wide MPPT operating range: operating voltage range: 160 - 1000 V, with two independent MPP followers for flexible system design.
- PV and battery hybrid support: Fully compatible with LUNA2000 energy storage systems, with a DC voltage range of 600-980 V and a maximum discharge power of 8 kW.
Smart security solutions:
- Built-in AFCI (arc-fault protection) and RSD (with quick-set optimizer)
- Temperature detection of PV and battery terminals
- DC/AC surge protection (TYPE II, IEC 61643-11)
Support for asymmetric phases:
Full support for three-phase asymmetrical loads, up to 200% overload capacity for short periods.
Quiet, natural cooling:
It operates with fanless passive cooling, noise level ≤29 dB.
IP66 protection:
Fully dust and waterproof design for both outdoor and indoor use.
Technical data:
- Recommended PV output: max. 14.600 Wp
- Rated power output: 8000 W
- Max. input voltage: 1100 V
- Number of MPPT followers: 2
- Max. input current per MPPT: 16 A
- Compatible optimisers: SUN2000-450W-P2, SUN2000-600W-P
Communication and control:
- RS485, WLAN/Ethernet or optional 4G Dongle support
- FusionSolar application for system monitoring
- EMMA Energy Management Assistant compatibility
Physical parameters:
- Size: 490 × 460 × 130 mm
- Weight: 21 kg (with mounting bracket)
- Éjszakai fogyasztás: < 5,5 W
Huawei SUN2000-8K-MAP0
€1.163,00 EUR
