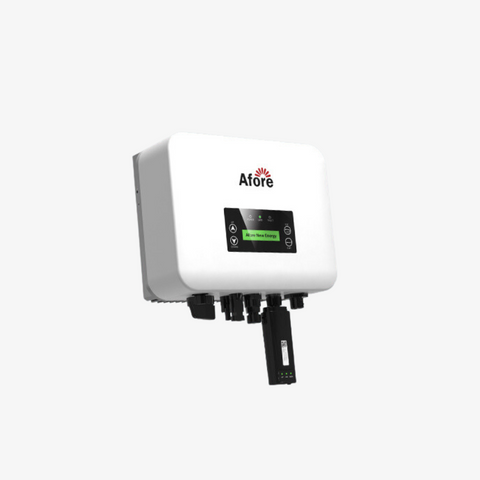

Afore HNS2500TL-1

The Afore HNS1-3kW single-phase inverter is a state-of-the-art device that provides excellent efficiency and reliability for solar PV systems. The inverter is an ideal choice for residential applications, especially for small to medium sized photovoltaic (PV) systems.

Main features

• High efficiency: Maximum MPPT efficiency > 99.9%, maximum conversion efficiency 98.1%, ensuring maximum energy utilisation and cost efficiency.
• Compact and lightweight design: The aluminium unibody housing increases durability and effectively prevents corrosion, and provides excellent heat dissipation, which increases the reliability and lifetime of the inverter.
• No fan: The fanless design reduces noise and increases the lifetime of the device.
• Easy installation: Quick and easy installation, saving users time and money.
• Intelligent communication: has a Wi-Fi module with Ethernet/GPRS option. The status of the inverter can be checked anytime and from anywhere via an online portal or mobile app.
• Several types of protection: PV surge protection, reverse polarity protection, insulation resistance protection, AC overcurrent protection, short circuit protection and overheat protection ensure system safety.

Technical data

PV input data:

• Max. DC power: 1500 W - 4200 W
• Max. DC voltage: 500 V
• MPPT voltage range: 50-500 V
• Starting voltage: 50-145 V
• Max. input current: 14-18 A
• Number of MPPT trackers: 1

AC output data:

• Max. output power: 1000 W - 3300 W
• Rated output power: 1000 W - 3000 W
• Max. output current: 6-15 A
• Rated output voltage: 220/230/240 V
• Rated frequency: 50/60 Hz
• Performance factor: 0.8 lagging - 0.8 leading

Efficiency:

• Maximum efficiency: 98.10%

Protection and security:

• PV reverse polarity protection
• PV insulation resistance protection
• AC short circuit protection
• AC overcurrent protection
• AC overheating protection
• Built-in DC switch

General information:

• Dimensions (H x W x D, mm): 260 x 280 x 116
• Súly (kg): <21
• Protection level: IP65
• Material: aluminium
• Operating temperature range: -25°C - +60°C
• Relative humidity: 0-100%
• Cooling method: natural convection
• Communication interface: RS485 / WiFi / Ethernet / GPRS (optional)
• Éjszakai fogyasztás (W): <1
• Maximum operating height (m): 4000

Summary

The Afore HNS1-3kW single-phase inverter is the ideal choice for residential solar systems that require reliable and efficient operation. The inverter has a number of advanced features and protection mechanisms to ensure long-term stability and performance. The compact and lightweight design and easy installation make it easy to use, while Wi-Fi and other communication options make it easy to monitor system status.

Downloadable documents:

Certificate: Download
Product data sheet: Download
Instructions for use: Download
