Energrosso - Austria
FOX-ESS EP 5 - Battery with capacity of 5.18KWH
Guarantee:
Item Number: C00397

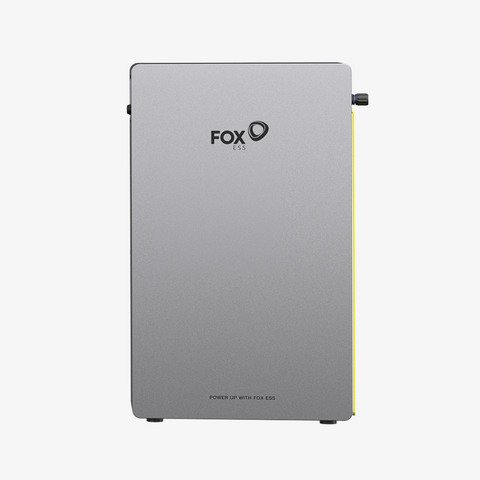

The FOX-ESS EP5 is an advanced, high-voltage lithium iron phosphate (LiFePO₄) battery that provides excellent efficiency, reliability and expandability for residential and small commercial energy storage systems. Its compact design and IP65 protection rating make it suitable for both outdoor and indoor installation.
Key features:
- Rated capacity: 5,18 kWh
- Rated voltage: 192 V
- Operating voltage range: 174-219 V
- Max. charging/discharging current: 27 A
- Recommended charging current: 13.5 A
- Peak discharge power: 65 A (for 60 seconds)
- Peak charging power: 32.4 A (5 seconds)
- Rounded efficiency: ≥95%
- Deep discharge limit (DOD): 90%
- Communication: CAN protocol
- Display: LED status indicator (5 pcs)
- Scalability: up to 4 units in parallel (max. 20.8 kWh capacity)
Installation and environmental characteristics:
- Installation: wall or floor mounting
- Cooling: natural convection
- Operating temperature: charging: 0°C - 55°C / baking: -10°C - 55°C
- Storage temperature: 0°C - 35°C
- Relative humidity: 5-95% (non-condensing)
- Max. installation height: 3000 m
- Protection: IP65 (dust and waterproof)
- Dimensions: 380 × 625 × 147 mm
- Weight: ~50,5 kg
Certificates:
- Safety: IEC62619
- EMC compliance: EN IEC 61000-6-1/3
- Delivery: UN38.3
FOX-ESS EP 5 - Battery with capacity of 5.18KWH
€1.150,00 EUR
