FOX-ESS EP battery Parallel Junction Box
Guarantee:
Item Number: C00398

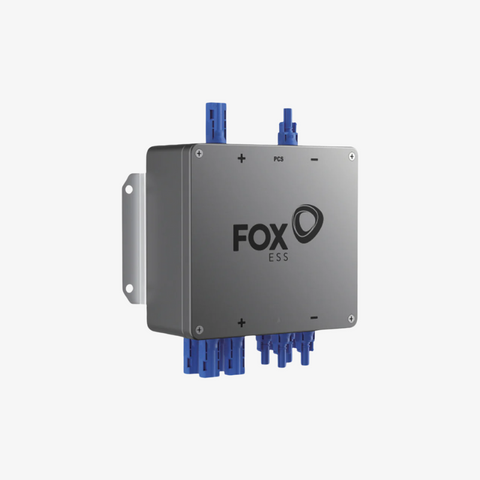

The FOX-ESS HV-Junction Box is a high-voltage, high-performance junction box that allows up to 4 EP series batteries to be connected in parallel. It is the ideal choice for scalable expansion of the system's energy storage capacity up to 41.4 kWh.
The unit is naturally cooled and IP65 rated, making it suitable for both indoor and outdoor installation. Wall-mounted design, compact size and light weight for easy installation.
Key features:
- Supports 4 batteries connected in parallel
- Full capacity extension up to 41,4 kWh
- High voltage system: rated voltage 500 V
- Maximum continuous current: 50 A
- Short-time peak load: 65 A (for 60 seconds)
- Natural cooling, quiet operation
Technical data:
- Compatible systems: K, H1(G2), H3, H3 PRO, US series
- Operating temperature: -20°C - +55°C
- Storage temperature: -20°C - +70°C
- Optimum operating temperature: 15°C - 30°C
- Relative humidity: 5-95% (non-condensing)
- Maximum installation height: ≤ 2000 m
- Protection class: IP65
- Dimensions: 223 × 246 × 89 mm
- Weight: 2,6 kg
- Environmental compliance: ROHS, REACH
FOX-ESS EP battery Parallel Junction Box
€65,00 EUR
