Deye SUN-3,6K-SG03LP1-EU
Energrosso - Austria

Deye SUN-3,6K-SG03LP1-EU

Guarantee:
Item Number: C00401

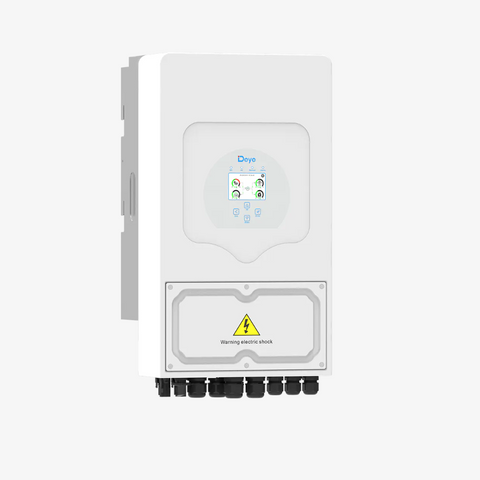

The Deye SUN-3.6K-SG03LP1-EU is an intelligent single-phase hybrid inverter that is ideal for residential energy storage systems. It offers outstanding flexibility and reliability for both grid-connected and islanded applications. It supports battery energy storage and retrofitting of existing solar systems with AC coupling.

Key features:
  • Maximum charging/discharging current: 90 A
  • Battery type: lithium-ion or lead-acid, automatic BMS charging
  • Battery voltage range: 40-60 V
  • AC coupling: possibility of hybrid expansion of existing systems
  • Max. PV power: 7200 W
  • 2 MPP trackers, 1-1 string per input
  • AC input/output: 230 V, 50 Hz
  • Max. AC power: 3960 VA
  • Supported battery input: 1 input, multiple batteries can be connected in parallel
  • Parallel operation: max. Max. 16 inverters in parallel (on-grid or off-grid)

Efficiency and protection:
  • Max efficiency: 97.6%
  • MPPT efficiency: >99%
  • Euro efficiency: 96.5%
  • THDi: <3%
  • DC injekció: <0,5% In
  • Protection: DC polarity, overcurrent, overvoltage, islanding, arc fault (optional), earth fault, RCD, etc.
  • Surge protection: TYPE II (DC and AC side)

Communication and observation:
  • Remote monitoring: GPRS, WIFI, Bluetooth, 4G, LAN (optional)
  • Communication ports: RS485, RS232, CAN
  • Environmental and mechanical data:
  • IP protection: IP65
  • Cooling: intelligent airflow
  • Zajszint: <30 dB
  • Operating temperature: -40°C - +60°C (derating >45°C)
  • Dimensions: 330 × 580 × 232 mm
  • Weight: 25 kg
