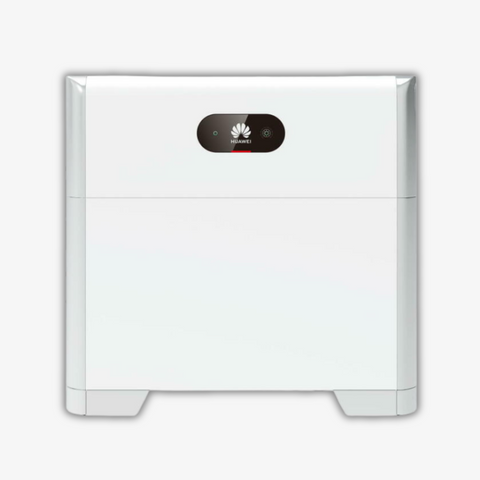

Huawei LUNA2000-5-EO Battery Module
Guarantee:
Article No: C00309
The Huawei LUNA2000-5-E0 is a battery module based on advanced lithium iron phosphate (LiFePO4) technology, which works as part of the Huawei LUNA2000 energy storage system. The module provides a perfect solution for the energy storage needs of residential and small commercial solar PV systems with high efficiency, safety, and expandability.
Key features:
- Capacity: 5 kWh nominal energy storage capacity
- Usable energy: 100% Deep Discharge Capability (DoD), which maximises energy utilisation
- Cell technology: lithium-ferrous phosphate (LFP) for long life and increased safety
- Energy optimisation: module-by-module energy management to improve system performance
- Scalability: scalable from 5 to 30 kWh thanks to its modular design, with up to 2 systems operating in parallel
- Compatibility: fully compatible with several types of Huawei SUN2000 inverters (e.g. SUN2000-L1, M0, M1 series)
Technical data:
- Dimensions: 670 × 150 × 360 mm
- Weight: 50 kg
- Installation: floor-mountable as standard; wall-mountable as an option
- Hűtés: Természetes konvekció – ventilátormentes, csendes működés (<29 dB)
Environmental characteristics:
- Operating temperature: -10°C - +55°C
- Relative humidity: 5-95%
- Protection class: IP66
Communication:
- Indicators: LED status indicator for level of charge (SOC)
- Communication protocol: RS485 / CAN (for parallel systems)
Certificates:
- CE, RCM, CEC, VDE2510-50, IEC62619, IEC 60730, UN38.3
Huawei LUNA2000-5-EO Battery Module
€1.646,00 EUR
