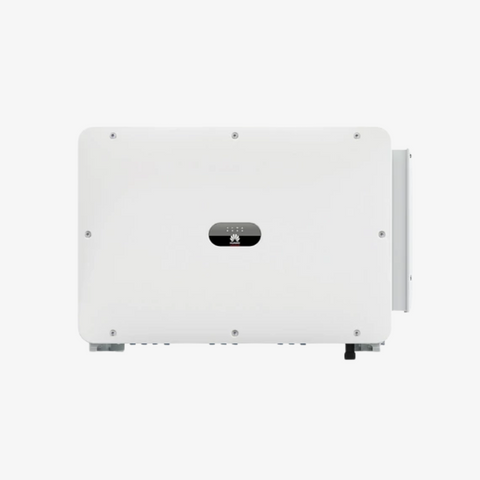

Huawei SUN 2000-100KTL-M2-AFCI
Guarantee:
Article No: C00427
The Huawei SUN2000-100KTL-M2-AFCI is an advanced, high-performance three-phase solar inverter that is an ideal choice for industrial and commercial photovoltaic systems. With its high maximum efficiency of up to 98.8% and 10 independent MPPT trackers, the device provides excellent power generation efficiency and flexibility for complex solar PV systems.
Key features:
- Maximum efficiency: 98.6% (at 400 V), 98.8% (at 480 V)
- European efficiency: 98.4% (400 V), 98.6% (480 V)
- Number of MPPT trackers: 10, with 2 inputs per MPPT
- Rated power: 100 kW
- Maximum AC power: 110 kVA
- Rated voltage: 400 V / 480 V, three-phase
- Rated current: 144.4 A @400 V, 120.3 A @480 V
- MPPT operating voltage range: 200 V - 1000 V
- Starting voltage: 200 V
- Max. input voltage: 1100 V
- Max. MPPT current: 30 A
- Short circuit current per MPPT: 40 A
Protection and security:
- AFCI (arc fault protection) integrated
- Clever string-level separator
- Type II surge protection on DC and AC side
- PV string error monitoring
- Residual current monitoring and DC insulation resistance detection
- Anti-islanding protection
- Reverse polarity protection
Communication and monitoring:
- RS485 and USB port
- WLAN adapter and FusionSolar app
- MBUS support (isolation transformer required)
- Smart Dongle support (4G / 3G / 2G option)
General information:
- Dimensions: 1035 × 700 × 365 mm
- Weight: 93 kg (with mounting plate)
- Operating temperature: -25°C - +60°C
- Cooling: intelligent airflow
- Éjszakai fogyasztás: < 3,5 W
- Protection: IP66
- Max. operating altitude: 4000 m
Compliance standards:
- EN 62109-1/-2, IEC 62109-1/-2, IEC 62116, IEC 60068
- Grid: VDE-AR-N4105, VDE 4110, EN 50549-1/-2 etc.
Huawei SUN 2000-100KTL-M2-AFCI
€3.487,00 EUR
