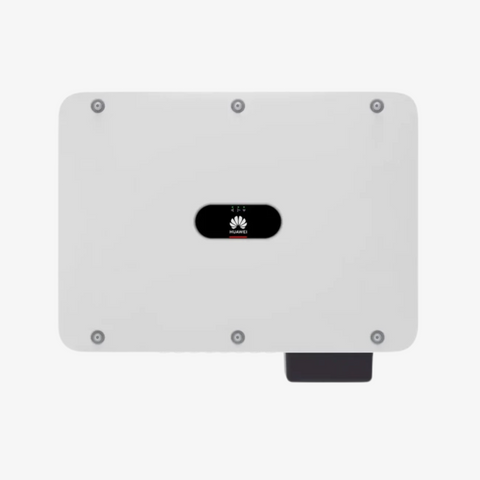

Huawei SUN 2000-36KTL-M3
Guarantee:
Article No: C00425
The Huawei SUN2000-36KTL-M3 is a high performance, three-phase smart inverter designed for industrial and commercial solar PV systems. The device offers outstanding efficiency of up to 98.7% and features 4 independent MPP trackers (MPPT) and 8 input channels, allowing optimized operation of panels in complex systems.
Key features:
- Rated AC power: 36 000 W
- Maximum input voltage: 1 100 V
- MPP voltage range: 200 V - 1000 V
- Starting voltage: 200 V
- Maximum input current per MPPT: 26 A
- Short circuit current per MPPT: 40 A
- Number of MPP followers: 4
- Number of DC inputs: 8
- Maximum apparent AC power: 40 000 VA
- Night-time consumption: ≤ 5.5 W
Protection and reliability:
- DC and AC surge protection (Type II)
- Built-in arc fault protection (AFCI)
- DC insulation resistance monitoring
- PV string fault monitoring
- DC side polarity protection
- Built-in PID regeneration - to reduce solar cell performance degradation
Communication and remote monitoring:
- RS485 communication
- Integrated WLAN and FusionSolar app support
- Optional Smart Dongle connectors: WLAN-FE, 4G
- MBUS communication protocol support (isolated transformer required)
Physical parameters:
- Dimensions: 640 x 530 x 270 mm
- Weight: 43 kg
- Cooling: natural airflow
- Operating temperature: -25 °C - +60 °C
- IP protection: IP66 - suitable for outdoor use
- Max. installation height: 2000 m
Compatibility:
- Optimizer compatibility: with DC MBUS optimizer type SUN2000-450W-P
- Topology: transformerless
Huawei SUN 2000-36KTL-M3
€2.087,00 EUR
