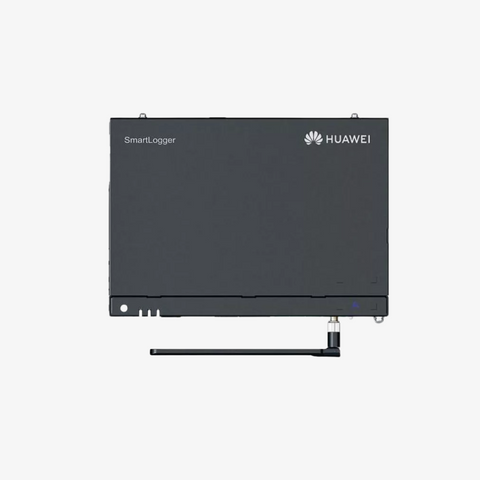

Huawei Smart Logger3000A03EU
Guarantee:
Item Number: C00440
The Huawei SmartLogger3000A03EU is an advanced data logger and communication device that can simultaneously manage up to 80 solar inverters, meters and sensors. The device is designed for real-time PV system monitoring, data collection, and grid export control with outstanding reliability and extensive communication capabilities.
Key features:
- Maximum device management: connect and monitor up to 80 devices simultaneously.
- Wide range of communication interfaces:
- WAN/LAN: 10/100/1000 Mbps Ethernet
- RS485: 3 ports with a communication distance of up to 1000 meters
- MBUS: 1 port (PLC compatible), only in A03EU version
- Mobile network connectivity: 2G/3G/4G support (LTE FDD and UMTS frequency bands)
Digital and analogue inputs/outputs:
- 4 digital inputs, 2 digital outputs (DO: 12V, 100mA)
- 4 analogue inputs
- Compatible protocols: Modbus-TCP/RTU, IEC 60870-5-104/103, DL/T645
User interfaces:
- Built-in web interface
- USB 2.0 port
- WLAN connection for mobile app deployment
- LED status indicators: RUN, ALM, 4G
Technical data:
- Power supply: AC: 100-240 V, 50/60 Hz | DC: 12V / 24V
- Power consumption: average: 8 W | maximum: 15 W
- Operating temperature: -40 °C - +60 °C
- Storage temperature: -40 °C to +70 °C
- Relative humidity: 5% - 95% (non-condensing)
- Max. installation height: 4000 m
- Dimensions: 225 × 160 × 44 mm
- Weight: 2 kg
- Protection class: IP20
- Installation methods: Wall mounting, DIN rail mounting, desktop mounting
Benefits:
- Intelligent control: zero-net-feed management
- Easy installation: pre-configured settings, quick setup with WLAN
- Reliability: built-in lightning protection module
- Flexibility: wide range of communication options and device compatibility
Huawei Smart Logger3000A03EU
€763,00 EUR
