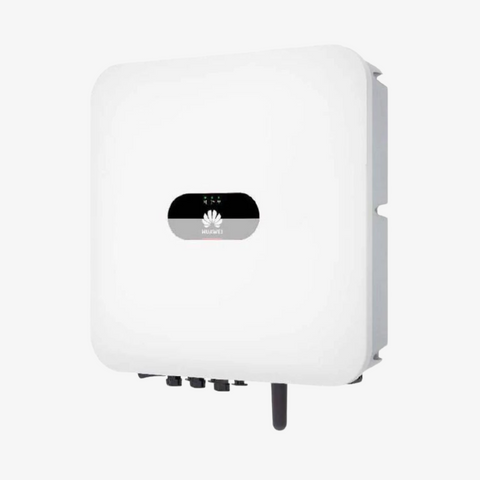

Huawei SUN 2000-4KTL-L1
Guarantee: 10 years
Item Number: C00408
The Huawei SUN2000-4KTL-L1 is a smart single-phase inverter that offers outstanding efficiency and reliability for residential solar PV systems. Thanks to Huawei's advanced technology, the system provides optimized power generation, high security, and flexible communication options, while also enabling the integration of battery energy storage systems.
Key features:
- Maximum efficiency: 98.4%, European weighted efficiency: 97.5%
- Recommended max PV power: 6.000 Wp
- MPPT efficiency: 2 MPP trackers with 90 V-560 V operating voltage
- Output power: 4.000 W nominal, 4.400 VA maximum apparent power
- Battery compatibility: Huawei Smart String ESS battery (5-30 kWh), 350-560 V DC range
- Max. charging power: 5.000 W, discharge power: 4.400 W
- Backup output (backup): available with Backup Box B0
Security and protection features:
- Active arc fault protection (face fault)
- Insulation monitoring, overvoltage protection (AC/DC), overheating protection
- DC reverse polarity protection
- Preventing battery back-feeding to the grid
Communication and control:
- RS485, built-in WLAN
- Optional Smart Dongle via Ethernet or 4G connection
- Compatible with Huawei optimizers (e.g. SUN2000-450W-P2, SUN2000-600W-P)
- Environmental and physical parameters:
- IP65 protection - ideal for outdoor installation
- Passive cooling (natural convection)
- Operating temperature: -25 °C - +60 °C
- Dimensions: 365 × 365 × 156 mm
- Weight: 12 kg (including mounting frame)
Huawei SUN 2000-4KTL-L1
€519,00 EUR
