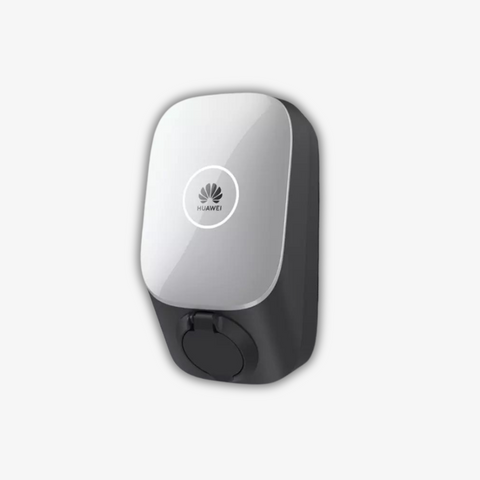

Huawei SCharger-22KT-S0 3 phase car charger
Guarantee:
Article No: C00312
The Huawei SCharger-22KT-S0 is an advanced, high-performance electric car charger capable of charging up to 22 kW. It operates in three modes - normal, scheduled and PV surplus charging - so it can be perfectly adapted to users' needs, especially with the integration of solar systems. The charging process can be easily programmed and the device provides convenient access via RFID, Bluetooth and mobile app.
Key benefits:
- Adjustable charging power from 1.4 kW up to 22 kW. Compatible with single and three-phase systems (6-32 A) and vehicles with Type 2 connector.
Smart modes:
- Normal charging
- Scheduled charging (pre-programmable time interval)
- PV surplus charging, which uses the surplus energy produced by the solar PV system.
Communication and control:
- Wi-Fi and Ethernet connection
- Modbus TCP protocol
- Status display via WRGB LED and full control from mobile app
- Access via RFID, app and Bluetooth
Safety and security:
- Integrated RCD Type A (30 mA) + DC 6 mA leakage current protection
- Protection against overcurrent, overvoltage and overheating
- Wire release detection, electric lock
- Impact resistant (IK10), IP54 enclosure
Compact and robust design:
- Suitable for both indoor and outdoor installation
- Wall-mountable design
- Operating temperature: -35°C to +50°C
- Dimensions: 335 × 180 × 145 mm
- Weight: 3,1 kg
- Alacsony készenléti fogyasztás: <6 W
Application and installation:
The Huawei SCharger-22KT-S0 is the perfect choice for private use, for corporate fleets or installed alongside solar systems. It can be quickly set up using the FusionSolar App and fully integrated into home or industrial energy management systems.
Accessories:
- 2 RFID cards
- Fixing elements for wall mounting
Huawei SCharger-22KT-S0 3 phase car charger
€353,00 EUR
