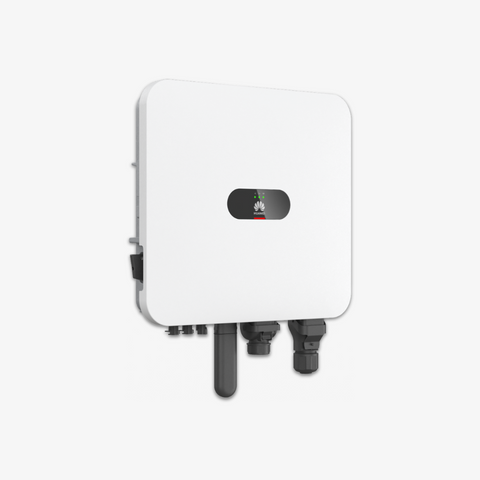

Huawei SUN2000-5K-MAP0
Guarantee: 10 years
Article No: C00531
The Huawei SUN2000-5K-MAP0 hybrid inverter offers a smart, secure and future-proof solution for residential solar PV systems. Integrated with Huawei's advanced power management architecture, it can not only convert solar energy, but also perform energy storage and load management tasks.
Main features
- Maximum efficiency: 98.4%
- European efficiency: 97.5%
- Recommended PV capacity: max. 9 000 Wp
- Number of MPPT inputs: 2 (with one input each)
- PV input (DC side)
- Max. input voltage: 1 100 V
- Operating range: 160 V - 1 000 V
- Rated input voltage: 600 V
- Starting voltage: 160 V
- Max. current per MPPT: 16 A
- Short circuit current: 22 A
Battery compatibility (hybrid function)
- Compatible batteries: LUNA2000-5/10/15-S0, LUNA2000-7/14/21-S1
- Operating voltage range: 600 - 980 V
- Max. discharge power: 5 000 W
- Max. charging power: 12 000 W
- Output characteristics (AC side)
- Mains connection: three-phase
- Rated power: 5 000 W
- Max. apparent power: 5 500 VA
- Max. output current: 8.3 A
- Output voltage: 220/380 V AC, 230/400 V AC, 240/415 V AC
- Performance factor: 0,8 leading - 0,8 lagging
Safety and security
- AFCI and RSD protection
- DC/AC overvoltage protection (Type II)
- DC reverse polarity and insulation fault protection
- Junction temperature detection
- Wave control and support for charging from the mains
Communication and integration
- Interfaces: RS485, WLAN/Ethernet (Smart Dongle), 4G Smart Dongle, EMMA compatibility
- Display: LED + FusionSolar App
- Optimizing support: SUN2000-450W-P2, SUN2000-600W-P, MERC-600W-PA0 (DC MBUS)
Physical characteristics
- Size: 490 × 460 × 130 mm
- Weight: 21 kg
- Cooling: natural convection
- Protection: IP66
- Noise level: ≤ 29 dB
- Éjszakai fogyasztás: < 5,5 W
Huawei SUN2000-5K-MAP0
€877,00 EUR
