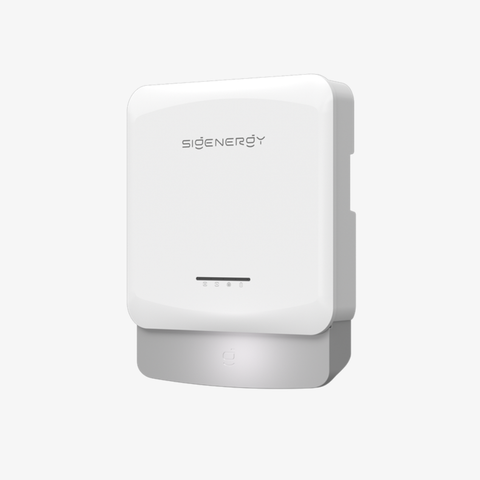

Sigen Hybrid 12.0 TP2

Item number: C00657

Guarantee: 10 years

The Sigen Hybrid 12.0 TP2 is a three-phase hybrid inverter with a nominal power of 12 kW, developed for Sigenergy's integrated energy management system, which is suitable for the combined management of solar energy production, high-voltage energy storage, and grid and backup operation. The device can be used in conjunction with the Sigen Energy Controller and SigenStor batteries, providing a complete, modularly expandable energy system for residential and small commercial solar applications.

Main features

• Three-phase hybrid inverter for solar panel and battery systems
• High-voltage battery connection via SigenStor BC
• Two MPPT inputs with wide DC voltage range
• Up to 200% DC/AC oversizing option for higher yield
• Integrated network and stand-alone (backup) operating modes
• IP66 protection for outdoor installation
• Passive, natural convection cooling with silent operation
• Ultra-thin, 99 mm design

Performance characteristics

• Nominal AC power: 12 kW
• Maximum apparent power: 13.2 kVA
• Maximum PV input power: 24 kW
• Maximum DC input voltage: 1100 V
• MPPT voltage range: 160–1000 V
• Nominal AC output current: 18.2 A
• Maximum AC output current: 20.1 A
• Backup peak power (10 seconds): 24 kW

Protection and security features

• DC reverse polarity protection
• Insulation monitoring and residual current monitoring
• Arc fault circuit protection (AFCI)
• AC overcurrent, overvoltage, and short-circuit protection
• Type II DC and AC surge protection
• Anti-islanding protection

Energy management and operating mode functions

• Integrated management of solar power generation and battery storage
• Automatic network and island mode switching
• Fast backup switchover (0 ms with appropriate system components)
• Priority management for maximizing self-consumption
• Can be integrated with EVDC charging solutions

General technical data

• Dimensions (W × H × D): 477 × 568 × 99 mm
• Weight: 19.5 kg
• Storage temperature: −40 to +70 °C
• Operating temperature: −30 to +60 °C
• Relative humidity: 0–100%
• Maximum operating altitude: 4000 m
• Cooling: natural convection
• Protection: IP66
• Noise level: 28 dB
• Nighttime consumption: 3 W

User and communication interfaces

• Communication: WLAN / Fast Ethernet / RS485
• Optional mobile communication: Sigen CommMod (4G/3G/2G)
• Remote monitoring and system integration via the Sigen platform

System integration and compatibility

• Can be used with Sigen Energy Controller
• Compatible with SigenStor BAT battery modules (1–6 modules / controller)
• Full integration with the Sigenergy solar and energy storage ecosystem

Standards and compliance

• IEC/EN 62109-1
• IEC/EN 62109-2
• IEC/EN 61000-6-1
• IEC/EN 61000-6-2
