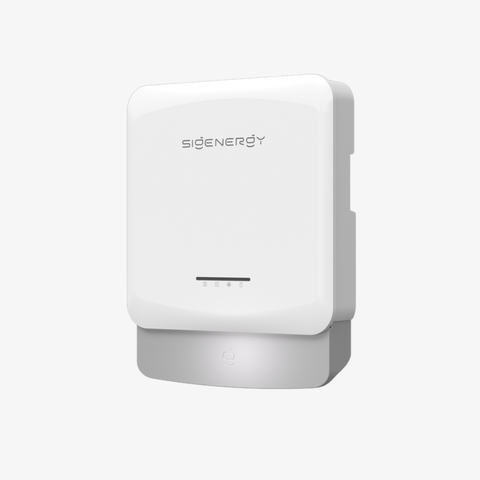

Sigen Hybrid 4.0 TP2

Item number: C00652

Guarantee: 10 years

The Sigen Hybrid 4.0 TP2 is a three-phase hybrid inverter from the Sigenergy Sigen Hybrid Inverter product family with a nominal output power of 4.0 kW and a maximum solar (PV) input power of 8,000 W. The device is prepared for battery expansion, has a slim design, is fanless and has IP66 protection, offering quiet operation and trouble-free use even at high performance.

Key benefits

• Prepared for battery expansion for future expansion
• Slim design – smaller installation requirements
• Fanless design – powerful yet quiet (noise level ≤ 29 dB)
• IP66 protection rating – worry-free use
• Two maximum power point trackers (MPPT) on the solar side (2 MPPT, 1 string/MPPT)
• Wide MPPT voltage range: 160–1000 V; start voltage: 180 V
• Full communication: WLAN, Fast Ethernet, RS485, Sigen CommMod (4G/3G/2G)
•  Low nighttime power consumption: ≤ 5 W

Technical data

DC input (solar side)

• Maximum PV power: 8,000 W
• Maximum DC input voltage: 1,100 V
• Nominal DC input voltage: 600 V
• Starting voltage: 180 V
• MPPT voltage range: 160 – 1,000 V
• Number of MPPT: 2
• Number of strings per MPPT: 1
• Maximum input current per MPPT: 16 A
• Maximum short-circuit current per MPPT: 22 A

AC output – mains power supply

• Nominal output power: 4,000 W
• Maximum apparent power: 4 400 VA
• Nominal output current: 6.1 A
• Maximum output current: 6.7 A
• Nominal output voltage: 220/380, 230/400, 240/415 V (3W/N+PE)
• Nominal mains frequency: 50 / 60 Hz
• Power factor: 0.8 capacitive ~ 0.8 inductive
• Teljes áramharmonikus torzítás (THDi): < 3%

Impact

• Maximum efficiency: 98.3%
• European efficiency: 97.3%

Battery expandability

• Battery controller models: SigenStor BC
• Battery module models: SigenStor BAT series
• Number of modules per controller: 1–6
• Battery module voltage range: 600–900 V
• Peak power (10 seconds): 6,000 W
• Nominal output voltage: 220/380, 230/400, 240/415 V (3W/N+PE)

Built-in protection features

• DC reverse polarity protection
• Insulation monitoring
•  Residual current monitoring
• Arc Fault Circuit Interrupter (AFCI)
• AC overcurrent, overvoltage, and short-circuit protection
• Type II DC/AC surge protection
• Anti-islanding protection

General information

• Dimensions (W / H / D): 475 / 568 / 99 mm
• Tömeg: < 17 kg
• Storage temperature range: -40 to 70 °C
• Operating temperature range: -30 to 60 °C
• Relative humidity: 0% – 95%
• Maximum operating altitude: 4,000 m
• Cooling: natural convection
• Protection level (against ingress): IP66
• Communication: WLAN / Fast Ethernet / RS485 / Sigen CommMod (4G/3G/2G)
• Installation method: wall mountable
• Nighttime consumption: ≤ 5 W
• Noise level: ≤ 29 dB
