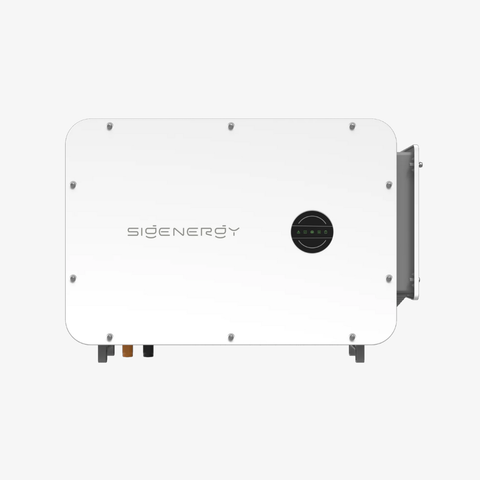

Sigen PV 100M1-HYA

Item number: C00661

Warranty: 5 years

The Sigen PV 100M1-HYA is Sigenergy's high-performance, three-phase hybrid inverter for commercial and industrial solar systems. Its battery-ready design allows a purely grid-connected PV system to be easily expanded into a PV + energy storage (ESS) solution at a later date. The device can also be used in multi-unit systems: parallel connection is possible without a separate data logger. Built-in AFCI arc fault detection and instant PV reverse connection indication support installation safety, while IP66 protection enables reliable outdoor operation.

Key benefits and features

• Lightweight design that can reduce shipping and installation costs
• Battery ready design: easy expansion to PV + ESS system
• Multiple units for parallel operation, without data collector
• AFCI arc fault interruption for enhanced safety
• Instant PV reverse polarity/wiring warning for correct installation
• IP66 protection: outdoor installation, easy operation (O&M)

DC input (PV – solar side)

• Max. PV input power: 200,000 Wp
• Max. DC input voltage: 1,100 V
• Nominal DC input voltage: 600 V (for 380/400 Vac mains), 720 V (for 480 Vac mains)
• Starting voltage: 180 V
• MPPT operating range: 160–1,000 V
• Number of MPPT: 8
• Number of PV strings per MPPT: 2
• Max. input current per MPPT: 40 A
• Max. short-circuit current per MPPT: 60 A

DC input (battery side)

• Battery model(s): SigenStack BAT 12.0
• System configuration (number of units): 4–21 units
• Max. charging power: 110,000 W
• Max. discharge power: 110,000 W
• Max. operating current: 180 A

AC output (three-phase mains side)

• Nominal output power: 100,000 W
• Max. apparent output power: 110,000 VA
• Max. effective output power (cosφ = 1): 110,000 W
• Nominal output current @380 Vac: 151.9 A
• Nominal output current @400 Vac: 144.9 A
• Nominal output current @480 Vac: 120.3 A
• Max. output current @380/400 Vac: 167.1 A
• Max. output current @480 Vac: 132.4 A
• Nominal output voltage: 380 / 400 / 480 Vac, 3W+(N)+PE
• Nominal mains frequency: 50 / 60 Hz
• Power factor (cosφ): 0.8 (capacitive) ~ 0.8 (inductive)
• Teljes áramharmonikus torzítás (THDi): < 2%

Impact

• Max. efficiency @380/400 Vac: 98.6%
• European efficiency @380/400 Vac: 98.4%
• Max. efficiency @480 Vac: 98.8%
• European efficiency @480 Vac: 98.6%

Protection and security

• DC reverse polarity protection
• Insulation supervision
• Residual current monitoring
• Arc Fault Circuit Interrupter (AFCI)
• AC overcurrent / overvoltage / short circuit protection
• Type II DC/AC surge protection
• Anti-islanding protection

General information

• Dimensions (W / H / D): 918 / 640 / 340 mm
• Weight: 78 kg
• Éjszakai sajátfogyasztás: < 3,5 W
• Storage temperature range: −40 ~ +70 °C
• Operating temperature range: −30 ~ +60 °C
• Relative humidity: 0% ~ 100%
• Maximum installation altitude: 5,000 m (power reduction above 4,000 m)
• PV connection type: MC4 (max. 6 mm²)
• AC connection type: OT / DT terminal block (max. 240 mm²)
• Cooling: Smart air cooling
• Protection: IP66

Communication

• Wi-Fi / Fast Ethernet / RS485 / Sigen CommMod (4G/3G/2G)
