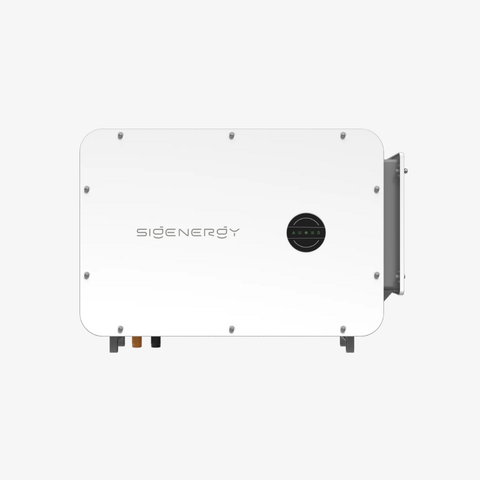

Sigen PV 60M1-HYB

Item number: C00689

Warranty: 5 years

The Sigen PV 60M1-HYB is a hybrid inverter with a rated power of 60 kW from the Sigenergy Sigen Hybrid Inverter series, designed for higher-power solar systems and battery energy storage. The device supports 0 ms load-side switching to backup power and 150% overload capacity for 10 seconds, ensuring stable operation even with dynamic loads and high starting current consumers. Multiple units can be connected via Energy Gateway, and the DC-coupled microgrid design allows for simpler configuration and more efficient energy flow.

Key product benefits

• 0 ms switchover to backup power (without load interruption)
• 150% overload capacity for up to 10 seconds for smooth device startup
• Connection of multiple units via Energy Gateway (expandable in the kW–MW range)
• DC-coupled microgrid solution for simpler system design and better efficiency
• IP66 protection for outdoor installation

DC input (PV)

• Maximum PV input power: 120,000 Wp
• Maximum DC input voltage: 1100 V
• Nominal DC input voltage: 600 V (380/400 Vac) or 720 V (480 Vac)
• Starting voltage: 180 V
• MPPT voltage range: 160–1000 V
• Number of MPPT: 5
• Number of PV strings per MPPT: 2
• Maximum input current per MPPT: 40 A
• Maximum short-circuit current per MPPT: 60 A

DC input (battery)

• Battery module compatibility: SigenStack BAT 12.0
• Battery controller compatibility: SigenStack BC M2-0.5C-BST / SigenStack BC M2-1C-BST
• System configuration: 4 - 21 units
• Maximum charging power: 66000 W
• Maximum discharge power: 66000 W
• Maximum operating current: 180 A

AC output (mains operation)

• Nominal output power: 60000 W
• Maximum output apparent power: 66000 VA
• Maximum effective output power (cosφ = 1): 66000 W
• Nominal output current @380 Vac: 91.2 A
• Nominal output current @400 Vac: 87.0 A
• Nominal output current @480 Vac: 72.2 A
• Maximum output current @380/400 Vac: 100.3 A
• Maximum output current @480 Vac: 79.4 A
• Nominal output voltage: 380 / 400 / 480 Vac, 3W+N+PE
• Nominal mains frequency: 50 / 60 Hz
• Power factor: 0.8 capacitive ~ 0.8 inductive
• Teljes áramharmonikus torzítás (THDi): < 3%

AC output (backup operation)

• Nominal output power: 60000 W
• Maximum output apparent power: 66000 VA
• Peak power (10 s): 90000 W
• Nominal output voltage: 380 / 400 / 480 V, 3W+N+PE
• Nominal output frequency: 50 / 60 Hz
• Power factor: 0.8 capacitive ~ 0.8 inductive
• Feszültségharmonikus torzítás (THDv): < 3%
• Standby power switchover interruption time: 0 ms

Impact

• Maximum efficiency: 98.3%
• European efficiency: 97.9%

Protection

• DC reverse polarity protection
• Insulation monitoring
• Residual current monitoring
• Arc Fault Circuit Interrupter (AFCI)
• AC overcurrent / overvoltage / short circuit protection
• Type II DC/AC surge protection
• Anti-islanding protection

General information

• Dimensions (W / H / D): 1110 / 668 / 348 mm
• Weight: 110 kg
• Storage temperature range: -40 ~ 70 °C
• Operating temperature range: -30 ~ 60 °C
• Relative humidity: 0-100%
• Maximum installation altitude: 5,000 m (power reduction above 4,000 m)
• Cooling: intelligent airflow cooling
• Protection: IP66
• Communication: WLAN / Fast Ethernet / RS485 / Sigen CommMod (4G/3G/2G)

Standards

• IEC/EN 62109-1, IEC/EN 62109-2, IEC/EN 61000-6-1, IEC/EN 61000-6-2
